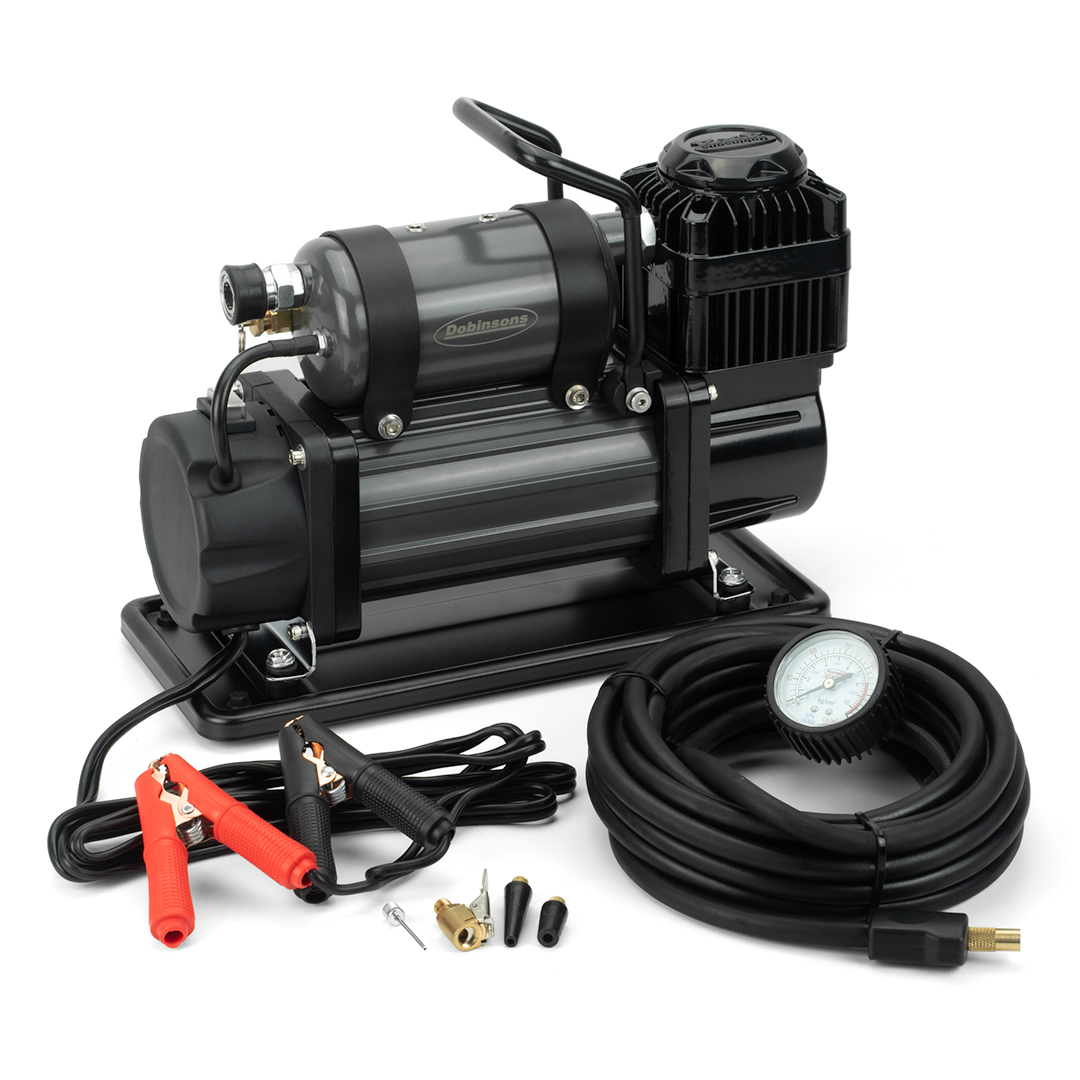

Dobinsons latest high output Air Compressor has been designed and tested in Australia to combine high volume air-flow for quick tyre inflation as well an integrated air tank, pressure cut-off switch and auxiliary ports for a variety of different applications.

Features

• 170L/ minute Air Flow

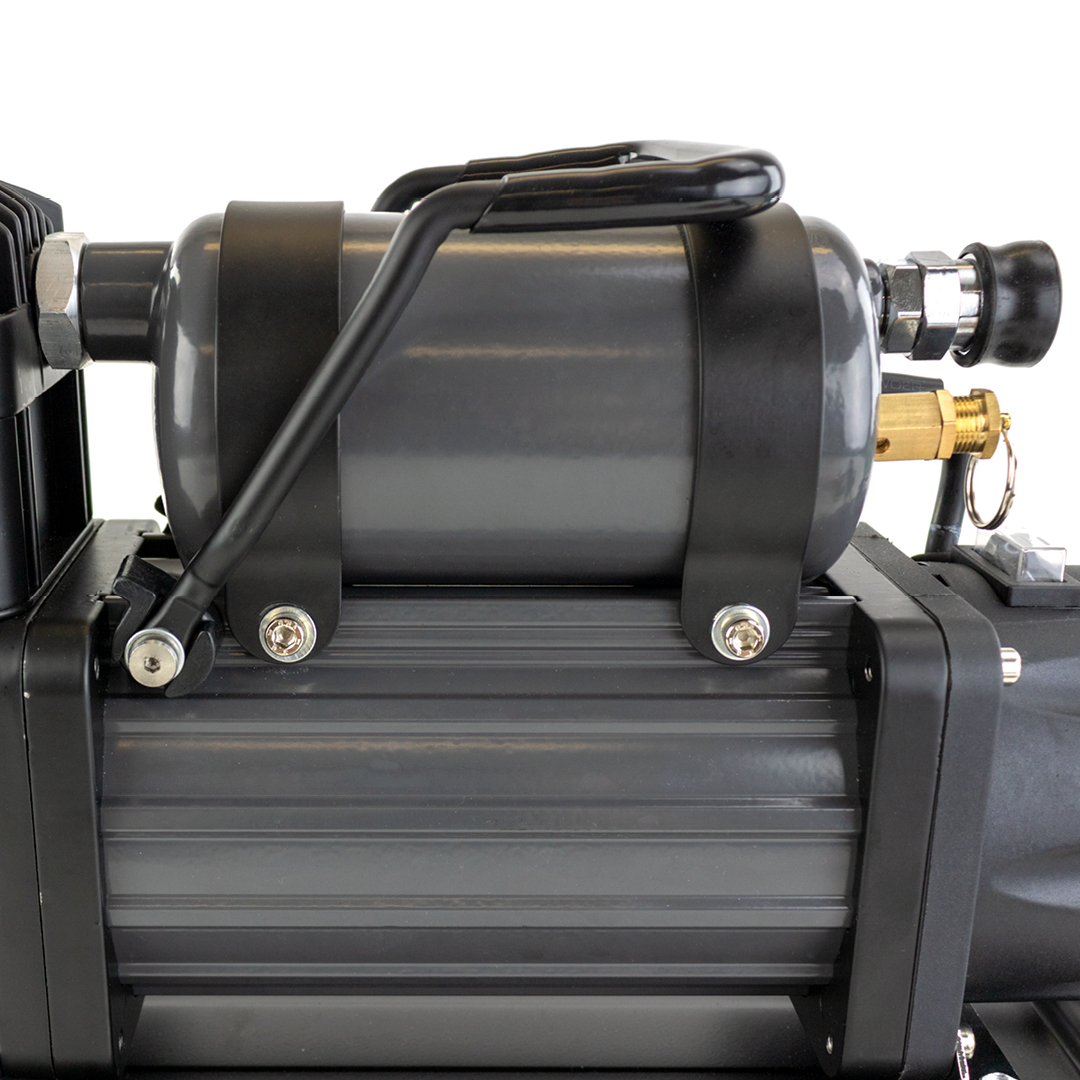

• Integrated Air Tank
• 2 x 1/8” NPT Auxiliary fittings

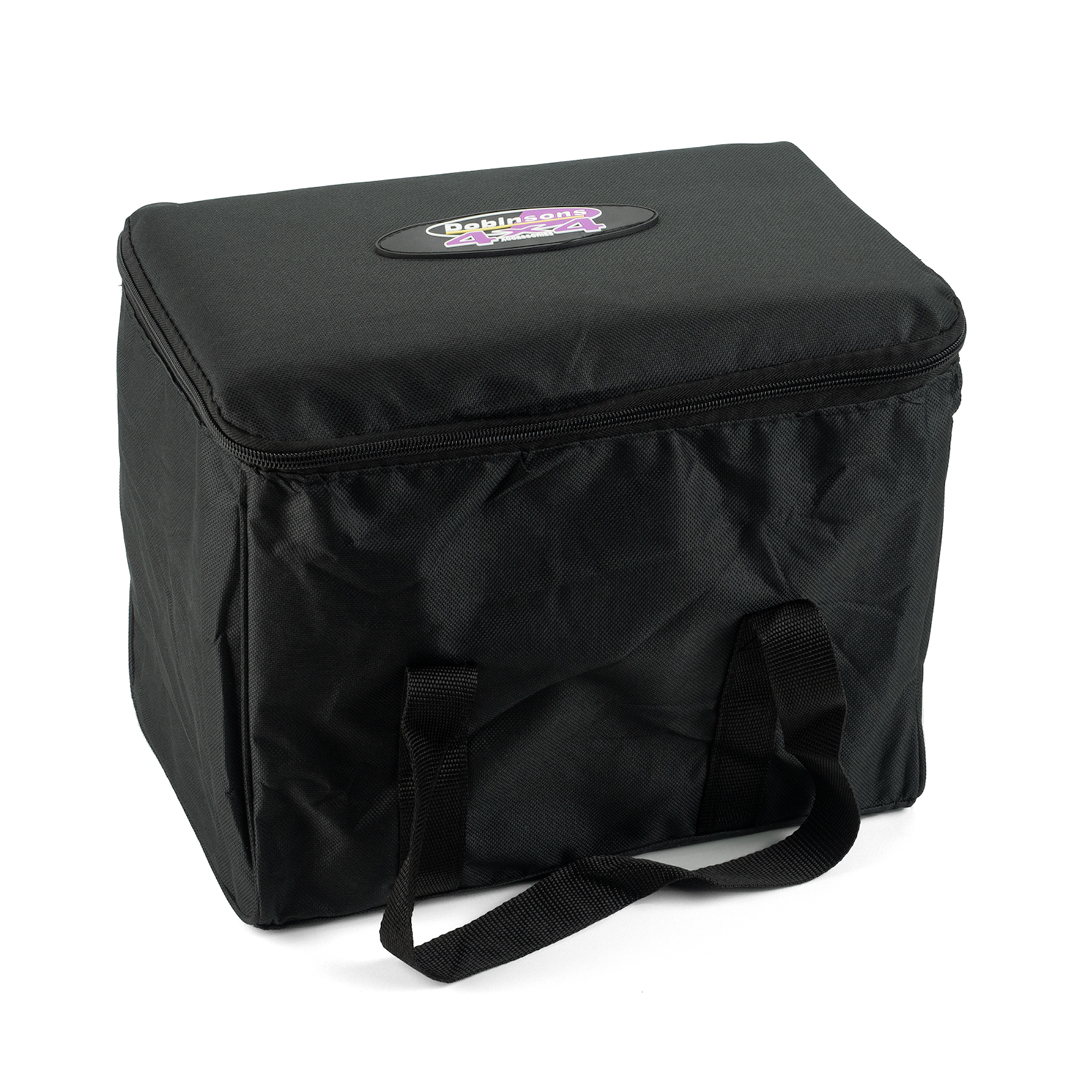

• Carry Bag

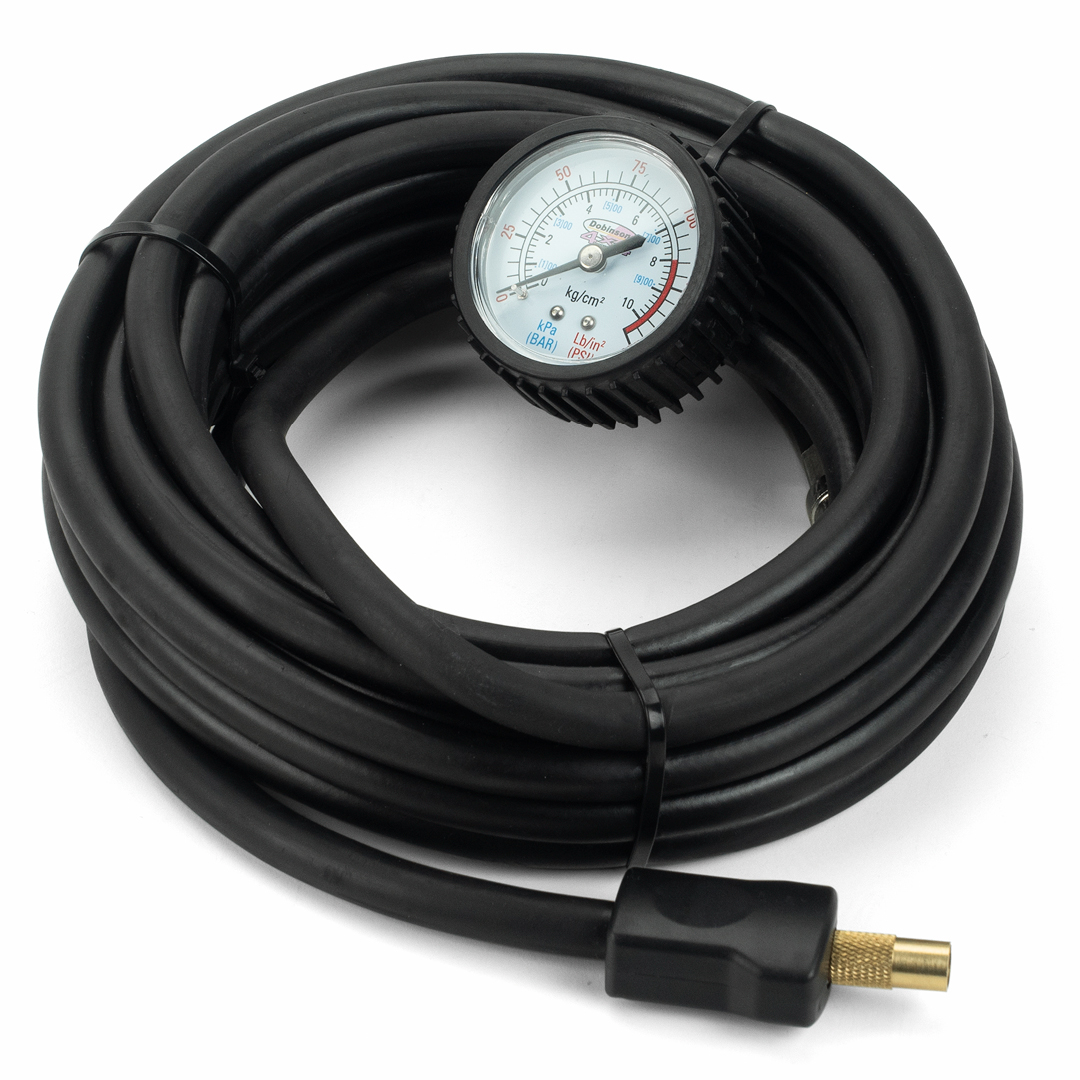

• 6.5 m Rubber Hose
• Pressure Cut Off Switch
• Safety Release Valve

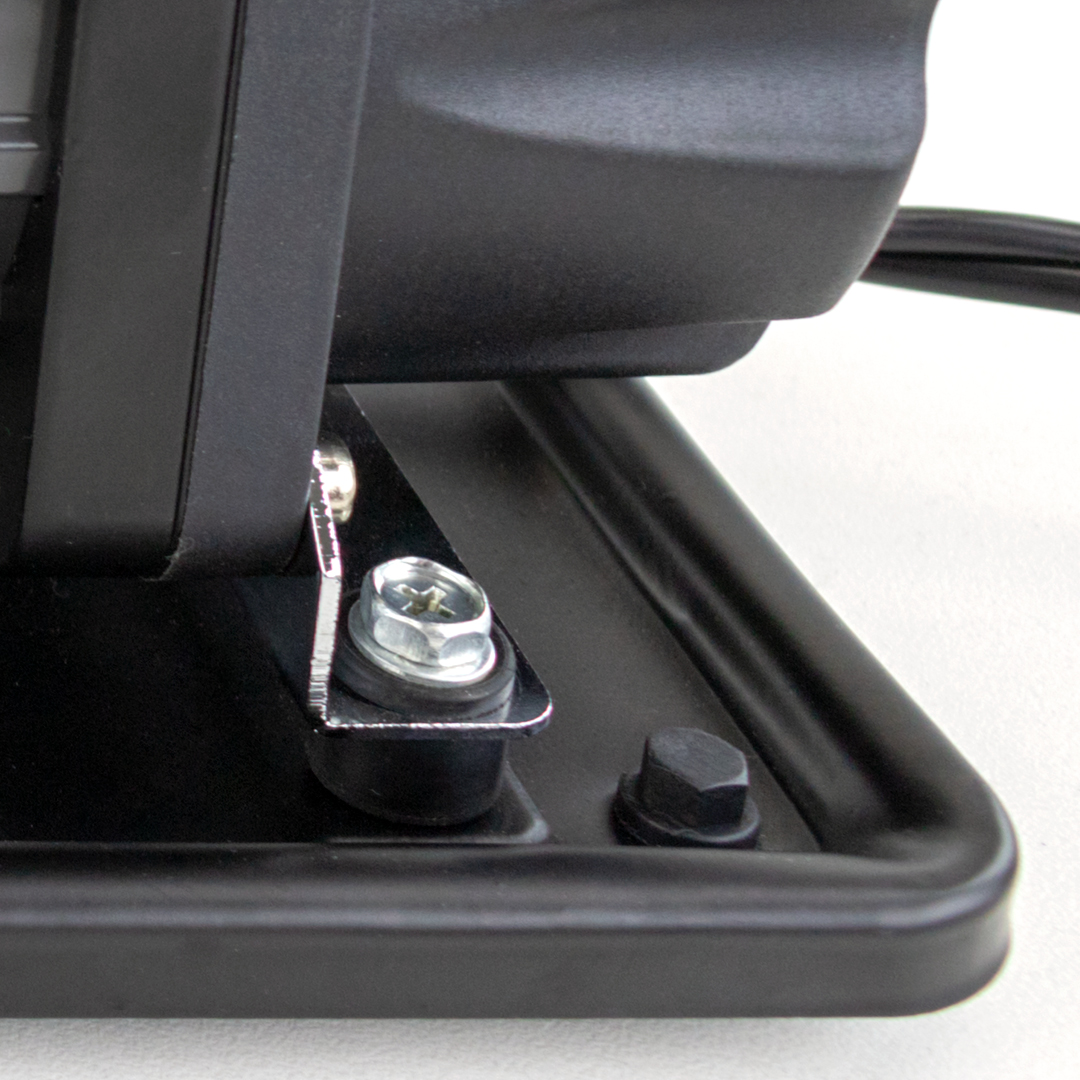

• Removable Base for Permanent Mounting
• Quick Release Tyre Chuck

Specifications

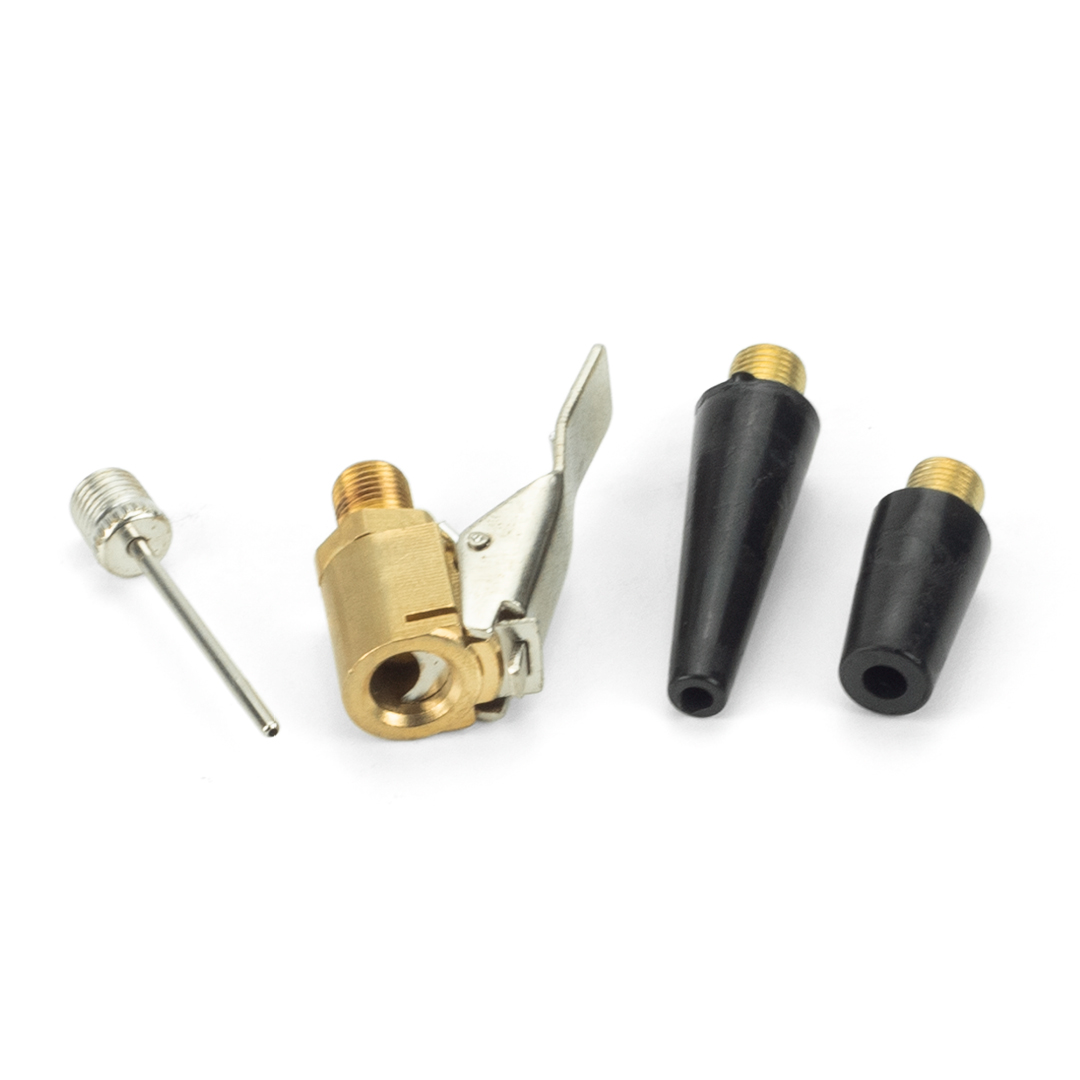

• Nozzle Adapters
• Pressure Gauge & Fuse
• Voltage: 12 Volts DC
• Motor Rating: 700 Watts
• Max Current Draw: 60 Amps
• Air Flow: 170L per minute
• Maximum Pressure: 125 PSI
• Cylinder Diameter: 60mm Full Metal
• Duty Cycle: 40min at 40 psi at 20°C
• Overload: 90 Amp
• Air Hose: Rubber 6.5 metre
• Air Tank Size: 0.19 Litres Approx
• Auxiliary Tank Fittings: 1/8” NPT
• Pressure Switch Cut-Off: 125 Psi
• Pressure Switch Cut-In: 90 Psi
• Dimensions mm (L x H x W): 340 x 240 x 15
• Part Number: AC80-3846
