Suitable For

Type:

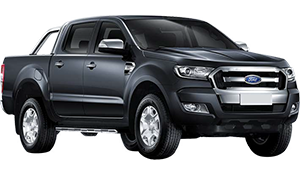

Ranger

Model:

PX / T7 MK3

Year:

Mid 06/2018 to 2022

Detail:

75mm Lift (3"),
4x4 Strut Mounted Front Bump Stop Models Only,
Also Suits 4x2 Highrider
Australian & Internationally delivered models with Bolt & Eye Lower Front Strut Bush

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Raised Height (75mm Lift)
0-50Kg

Part Number

C19-516

Availability

Linear Rate
Raised Height (75mm Lift)
80-100Kg

Part Number

C19-518

Availability

Shock Absorber

Must Fit Sway Bar Link SE19-570 With These Shock Absorbers

Twin Tube Nitro-Gas

Part Number

GS19-094

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 167mm / 6.56"

Part Number

IMS19-50094

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 167mm / 6.56"

Part Number

MRA19-A094

Availability

X - Centre of Eye to Spring Seat

Shock Absorber Bracket

Recommended For Optimal Remote Reservoir Positioning And Fitment

Part Number

RM19-002

Availability

Only For Use With MR19-50092

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
Ball Joint Not Included

Part Number

UCA19-004K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Swaybar Link

Must Fit With Dobinsons Shock Absorbers

Part Number

SE19-570

Availability

Rear

Leaf Spring

3 + 1 Leaves (Parabolic)
Raised Height (60mm Lift)

Part Number

L19-135-RP

Availability

3 + 1 Leaves (Parabolic)
Raised Height (3” Lift)

Part Number

L19-139-RP

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS19-081T

Availability

IFP Monotube Shock

Part Number

IMS19-50081T

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA19-A081T

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB19-1523
4 x PB19-1524
4 x PB19-1525

Part Number

PB19-1104K

Availability

U-Bolt Kit

Kit Contains:
2 x UB21-466

Part Number

UB21-466K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK19-058

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

Tailshaft Centre Bearing Spacer Kit

Part Number

WA19-526K

Availability

Helps to Reduce Driveline Vibration in Lifted Vehicles
