Suitable For

Type:

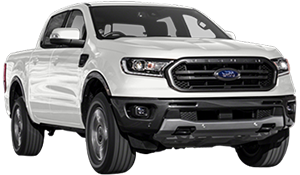

Ranger

Model:

PX / T7 MK3 (USA Only)

Year:

Mid 06/2018 on

Detail:

4x4 Strut Mounted Front Bump Stop Models Only,
Also Suits 4x2 Highrider
USA Delivered Models With Cross Bar Style Lower Front Shock Bush

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Raised Height (45mm Lift)
0-40Kg

Part Number

C19-532

Availability

Linear Rate
Raised Height (45mm Lift)
80-100Kg

Part Number

C19-534

Availability

Shock Absorber

Must Fit Sway Bar Link SE19-570 With These Shock Absorbers

IFP Monotube Shock
Adjustable Spring Seat Height
X = 186mm / 7.3"

Part Number

IMS19-50096

Availability

X - Centre of Eye to Spring Seat

Swaybar Link

Must Fit With Dobinsons Shock Absorbers

Part Number

SE19-570

Availability

Rear

Leaf Spring

3 + 3 Leaves
Medium Duty
Raised Height (35mm Lift)
Up to 100Kg Constant Load

Part Number

L19-131-R

Availability

4 + 3 Leaves
Heavy Duty
Raised Height (40mm Lift)
280Kg Constant Load (Recommended)

Part Number

L19-132-R

Availability

5 + 3 Leaves
Super Heavy Duty
Raised Height (40mm Lift)
500Kg Constant Load

Part Number

L19-133-R

Availability

3 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
150Kg Constant Load
Comfort Option

Part Number

L19-135-RP

Availability

Requires Trimming Of Exhaust Tailpipe For Clearance

3 + 1 Leaves (Parabolic)
Raised Height (60mm Lift)

Part Number

L19-135-RP

Availability

Requires Trimming Of Exhaust Tailpipe For Clearance

Shock Absorber

IFP Monotube Shock

Part Number

IMS19-50095

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB19-1523
4 x PB19-1524
4 x PB19-1525

Part Number

PB19-1104K

Availability

U-Bolt Kit

Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK19-058

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability
