Suitable For

Type:

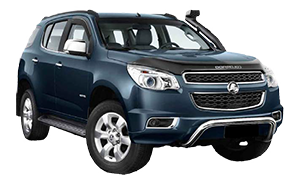

Colorado 7 SUV / Trailblazer

Model:

2nd Generation

Year:

2012 on

Detail:

2.8L Diesel, 2.5L Diesel, 3.6L Petrol

Download Catalogue Page

This vehicle has been issued with a recall notice to change the Coil Spring Stepped Isolator.
Take care when ordering Coil Springs or Shock Absorbers.

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

For vehicles with Flat Coil Spring Isolator

Linear Rate
Raised Height (40mm Lift)

Part Number

C59-134

Availability

Linear Rate
Raised Height (40mm Lift)
50-100Kg

Part Number

C59-296

Availability

SUITS vehicles with the Coil Spring Stepped Isolator fitted

Linear Rate
Standard Height (10mm Lift)
50-100Kg

Part Number

C21-382

Availability

Linear Rate
Raised Height (40mm Lift)
Up to 50Kg

Part Number

C21-384

Availability

Linear Rate
Raised Height (40mm Lift)
50-100Kg

Part Number

C21-386

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS21-470

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

MRA21-A470-1

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC59-002

Availability

Can only be used with C59-134 & C59-296

Rear

Coil Spring

Linear Rate
Raised Height (40mm Lift)
No Load

Part Number

C21-403

Availability

Linear Rate
Raised Height (40mm Lift)
150-250Kg Constant Load

Part Number

C21-407

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-940

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A940

Availability
