Suitable For

Type:

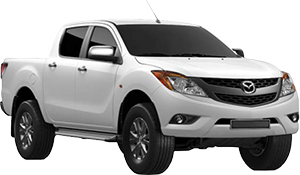

BT-50

Model:

Series II - UP/UR

Year:

10/2011 to Mid 2020

Detail:

4x4 3.2L Pickup / Well Back / Tray Back,
Also Suits 4x2 Highrider

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

4x2 High Rider

Linear Rate
Raised Height (40mm Lift)

Part Number

C19-420

Availability

Linear Rate
Raised Height (40mm Lift)
Comfort Option
(Reduced Rate)
50-90Kg

Part Number

C19-428

Availability

Linear Rate
Raised Height (40mm Lift)
50-90Kg

Part Number

C19-422

Availability

4x4

Linear Rate
Raised Height (35mm Lift)
Comfort Option
(Reduced Rate)
50-90Kg

Part Number

C19-428

Availability

Linear Rate
Raised Height (40mm Lift)

Part Number

C19-422

Availability

Linear Rate
Raised Height (40mm Lift)
50-90Kg

Part Number

C19-424

Availability

Linear Rate
Raised Height (55mm Lift)

Part Number

C19-424

Availability

Linear Rate
Raised Height (55mm Lift)
50-100Kg

Part Number

C19-474

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS19-092

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

IMS19-50092

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 190mm / 7.48”

Part Number

MRA19-A092

Availability

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Bracket.
If Vehicle Specific Bracket Does Not Work, Use RM80-005 Universal Bracket

Shock Absorber Bracket

Recommended For Optimal Remote Reservoir Positioning And Fitment

Part Number

RM19-002

Availability

Only For Use With MR19-50092

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
Ball Joint Not Included

Part Number

UCA19-004K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC19-009

Availability

Rear

Leaf Spring

3 + 3 Leaves
Medium Duty
Raised Height (40mm Lift)
Up to 100Kg Constant Load

Part Number

L19-131-R

Availability

4 + 3 Leaves
Heavy Duty
Raised Height (40mm Lift)
280Kg Constant Load (Recommended)

Part Number

L19-132-R

Availability

5 + 3 Leaves
Super Heavy Duty
Raised Height (40mm Lift)
500Kg Constant Load

Part Number

L19-133-R

Availability

3 + 1 Leaves (Parabolic)
Raised Height (50mm Lift)
150Kg Constant Load
Comfort Option

Part Number

L19-135-RP

Availability

3 + 1 Leaves (Parabolic)
Raised Height (60mm Lift)

Part Number

L19-135-RP

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS19-081T

Availability

IFP Monotube Shock

Part Number

IMS19-50081T

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA19-A081T

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB19-1523 (F)
4 x PB19-1524 (R)
4 x PB19-1525 (C)

Part Number

PB19-1104K

Availability

U-Bolt Kit

Kit Contains:
2 x UB21-466

Part Number

UB21-466K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK19-058

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

Tailshaft Centre Bearing Spacer Kit

Part Number

WA19-526K

Availability

Helps to Reduce Driveline Vibration in Lifted Vehicles
