Suitable For

Type:

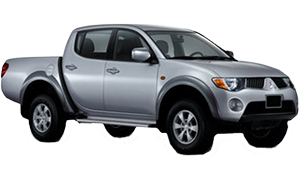

Triton, L200

Model:

ML, MN

Year:

05/2006 to 2015

Detail:

4x2 Highrider

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due To Vastly Different OE Ride Heights A Lift Of Only 20mm May Be Possible In Some Models

Linear Rate
Raised Height (40mm Lift)
Up to 70Kg

Part Number

C43-186

Availability

Linear Rate
Raised Height (45mm Lift)
70-120Kg

Part Number

C43-192

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-800

Availability

Strut Top Cap

Part Number

SC43-005

Availability

Top Out Stop Kit

Part Number

WA43-539K

Availability

Recommended To Fit This Kit With All Suspension Kits To Maintain Droop Travel

Rear

Leaf Spring

Two Stage

After Fitting These Springs, We Recommend Adjusting The Brake Proportioning Valve

3 + 2 Leaves
Raised Height (40mm Lift)
Comfort Spring

Part Number

L43-014-R

Availability

4 + 2 Leaves
Raised Height (45mm Lift)
Medium Duty
100Kg Constant Load

Part Number

L43-015-R

Availability

5 + 2 Leaves
Raised Height (45mm Lift)
Heavy Duty
350Kg Constant Load

Part Number

L43-016-R

Availability

6 + 2 Leaves
Raised Height (45mm Lift)
Extra Heavy Duty
550Kg Constant Load

Part Number

L43-017-R

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB43-1508
4 x PB43-1528
4 x PB43-1527

Part Number

PB43-1085K

Availability

U-Bolt Kit

Kit Contains:
2 x UB43-701

Part Number

UB43-701K

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-801

Availability

Twin Tube Nitro-Gas
Heavy Duty
(Long Travel)

Part Number

GS59-651

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK43-037

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

When Fitting Raised Suspension a Tailshaft Spacer is Required to Align the Centre Bearing and Prolong Life in Models with a 2 Piece Tailshaft

Part Number

S43-001

Availability
