Suitable For

Type:

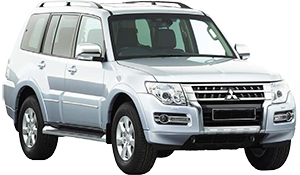

Pajero

Model:

V7 - NM, NP, NS, NT, NW

Year:

2000 on

Detail:

SWB, LWB V78, Station Wagon 3.5L V6, 3.8L V6, 3.2L Tdi

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

We Recommend A Wheel Alignment Be Carried Out After Fitting Springs.

SWB & LWB
NM - NP 3.5L V6
NS - NW 3.8L V6

Linear Rate
Standard Height (10mm Lift)

Part Number

C43-122

Availability

Linear Rate
Raised Height (40mm Lift)
Extra Heavy Duty
Up to 100Kg

Part Number

C43-126

Availability

Linear Rate
Raised Height (45mm Lift)
Recommended

Part Number

C43-124

Availability

SWB & LWB
NM - NW 3.2L Tdi

Linear Rate
Raised Height (40mm Lift)

Part Number

C43-126

Availability

Linear Rate
Raised Height (40mm Lift)
50-80Kg

Part Number

C43-148

Availability

Linear Rate
Raised Height (40mm Lift)
80-100Kg

Part Number

C43-144

Availability

Shock Absorber

IFP Monotube Shock
Adjustable Spring Seat Height
X = 241mm / 9.49"

Part Number

IMS43-50783

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(2-Way Compression Adjustable)
Adjustable Spring Seat Height
X = 241mm / 9.49"

Part Number

MRA43-A783

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC43-008

Availability

Under Body Bush Kit

SEE REAR UNDER BODY BUSH KIT

Rear

Coil Spring

We Recommend A Wheel Alignment Be Carried Out After Fitting Springs.

SWB

Linear Rate
Standard Height (10mm Lift)

Part Number

C43-123

Availability

Linear Rate
Raised Height (45mm Lift)
Up to 100Kg Constant Load
Recommended

Part Number

C43-191

Availability

Linear Rate
Raised Height (50mm Lift)
200Kg Constant Load

Part Number

C43-125

Availability

LWB

Linear Rate
Standard Height (10mm Lift)

Part Number

C43-189

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
180Kg Constant Load

Part Number

C43-193

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
250Kg Constant Load

Part Number

C43-195

Availability

Linear Rate
Raised Height (45mm Lift)
Extra Heavy Duty
400Kg Constant Load

Part Number

C43-197

Availability

Linear Rate
Raised Height (50mm Lift)
Up to 100Kg Constant Load
Recommended

Part Number

C43-125

Availability

Shock Absorber

IFP Monotube Shock

Part Number

IMS43-50784

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A784

Availability

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
4 x Front Control Arm Lower Inner
4 x Front Control Arm Upper Inner
4 x Rear Control Arm Lower Inner & Outer
4 x Rear Control Arm Upper Inner
2 x Rear Toe Control Arm Inner
2 x Rear Control Arm Lower Rear
2 x Rear Control Arm Lower Front

Part Number

PB43-1262K

Availability
