Suitable For

Type:

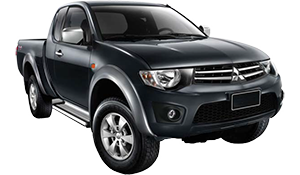

Triton, L200

Model:

ML, MN

Year:

05/2006 to 2015

Detail:

4x4, Warrior, 4x2 Highrider

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due to Vastly Different OE Ride Heights a Lift of Only 20mm May be Possible in Some Models

4x2 Highrider
4x4 MN 2.5 T/D Single Cab Only

Linear Rate
Raised Height (40mm Lift)
Up to 70Kg

Part Number

C43-186

Availability

Linear Rate
Raised Height (45mm Lift)
70-100Kg

Part Number

C43-192

Availability

4x4 ML 3.5 V6 Petrol
4x4 MN 2.5 T/D Dual Cab GL/GLX/GLX-R

Linear Rate
Raised Height (40mm Lift)
Up to 20Kg

Part Number

C43-192

Availability

Linear Rate
Raised Height (40mm Lift)
50-70Kg

Part Number

C43-206

Availability

Linear Rate
Raised Height (45mm Lift)
70-100Kg

Part Number

C43-188

Availability

4x4 ML 3.2 T/D

Linear Rate
Raised Height (40mm Lift)
Up to 70Kg

Part Number

C43-188

Availability

Linear Rate
Raised Height (45mm Lift)
70-100Kg

Part Number

C43-190

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-800

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 215mm/8.26"

Part Number

IMS43-50800

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 215mm / 8.26"

Part Number

MRA43-A800

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Top Out Stop Kit

Part Number

WA43-539K

Availability

Recommended To Fit This Kit With All Suspension Kits To Maintain Droop Travel

Strut Top Cap

Part Number

SC43-005

Availability

Rear

Leaf Spring

After Fitting The Springs Below, We Recommend Adjusting the Brake Proportioning Valve

3 + 2 Leaves
Raised Height (40mm Lift)
Comfort Spring

3 + 2 Leaves, Raised Height (40mm Lift), Comfort Spring

Part Number

L43-014-R

Availability

4 + 2 Leaves
Raised Height (45mm Lift)
Medium Duty
100Kg Constant Load

Part Number

L43-015-R

Availability

5 + 2 Leaves
Raised Height (45mm Lift)
Heavy Duty
350Kg Constant Load

Part Number

L43-016-R

Availability

6 + 2 Leaves
Raised Height (45mm Lift)
Extra Heavy Duty
550Kg Constant Load

Part Number

L43-017-R

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-801

Availability

Twin Tube Nitro-Gas
Long Travel
(Big Bore)

Part Number

GS59-651

Availability

IFP Monotube Shock

Part Number

IMS43-50801

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A801

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB43-1508 (F)
4 x PB43-1527 (R)
4 x PB43-1528 (C)

Part Number

PB43-1085K

Availability

U-Bolt Kit

05-2006 - 04/2013

Kit Contains:
2 x UB43-701

Part Number

UB43-701K

Availability

04/2013 on

Kit Contains:
2 x UB45-800

Part Number

UB45-800K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK43-037

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

When Fitting Raised Suspension, a Tailshaft Spacer is Required to Align the Centre Bearing and Prolong Life in Models with a 2 Piece Tailshaft

Tailshift Spacer

Part Number

S43-001

Availability
