Suitable For

Type:

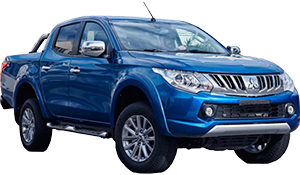

Triton, L200

Model:

MQ, MR 5th Generation

Year:

03/2015 on

Detail:

4x4,
Also Suits 4x2 Highrider

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Can Not Exceed 30mm Lift Due to Suspension Geometry Restrictions

Linear Rate
Raised Height (30mm Lift)
Up to 40Kg

Part Number

C43-314

Availability

Linear Rate
Raised Height (30mm Lift)
40-90Kg

Part Number

C43-316

Availability

Shock Absorber

** Batch Number 10250 on only, Spring Seat must not be lower than 215mm

Twin Tube Nitro-Gas

Part Number

GS43-800

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 215mm / 8.45" **

Part Number

IMS43-50800

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 215mm / 8.45" **

Part Number

MRA43-A800

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-30mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Top Out Stop Kit

Part Number

WA43-539K

Availability

Recommended To Fit This Kit With All Suspension Kits To Maintain Droop Travel

Strut Top Cap

Part Number

SC43-005

Availability

Rear

Leaf Spring

3 + 2 Leaves
Raised Height (30mm Lift)
Comfort Option
Minimal Load

Part Number

L43-163-R

Availability

4 + 1 Leaves
Raised Height (30mm Lift)
Medium Duty
Up to 80Kg Constant Load

Part Number

L43-162-R

Availability

4 + 2 Leaves
Raised Height (30mm Lift)
200-250Kg Constant Load

Part Number

L43-164-R

Availability

5 + 2 Leaves
Raised Height (30mm Lift)
Heavy Duty
350-400Kg Constant Load

Part Number

L43-165-R

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS43-801

Availability

IFP Monotube Shock

Part Number

IMS43-50801

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A801

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB43-1550 (F)
4 x PB43-1551 (R)
4 x PB43-1528 (C)

Part Number

PB43-1109K

Availability

U-Bolt Kit

Suits L43-162-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L43-163-R
Kit Contains:
2 x UB59-453-2

Part Number

UB59-453-2K

Availability

Suits L43-164-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Suits L43-165-R
Kit Contains:
2 x UB59-437

Part Number

UB59-437K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK43-063

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability

Tailshaft Spacer Kit

When Fitting Raised Suspension a Tailshaft Spacer is Required to Align the Centre Bearing and Prolong Life in Models with a 2 Piece Tailshaft

Part Number

S43-001

Availability
