Suitable For

Type:

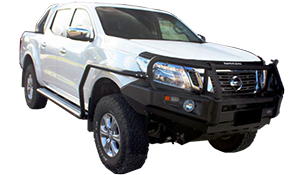

Navara / Frontier

Model:

D23, NP300

Year:

08/2014 on

Detail:

4x4 Single Cab / Dual Cab / Extra Cab,
Leaf Spring Rear Suspension Models

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due to the Restricted Suspension Geometry, a Maximum of 40mm Lift is Achievable in the Front of this Vehicle.

Must Fit GS45-642 or MR45-50642 Shock Absorbers If Raising Vehicle More Than 10mm

2.3L & 2.5L Turbo Diesel

Linear Rate
Standard Height (10mm Lift)
Heavy Duty
Up to 80Kg

Part Number

C45-440

Availability

Linear Rate
Raised Height (25mm Lift)

Part Number

C45-440

Availability

Linear Rate
Raised Height (35mm Lift)
Up to 50Kg

Part Number

C45-254

Availability

Linear Rate
Raised Height (35-40mm Lift)
60-90Kg
Comfort Option

Part Number

C45-248X

Availability

Linear Rate
Raised Height (40mm Lift)
80-100Kg

Part Number

C45-442

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-642

Availability

IFP Monotube Shock

Part Number

IMS45-50642

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A642

Availability

X - Centre of Eye to Spring Seat

Series 5 May Require Notching Of The Lower Trailing Arm to Allow MRR To Fit

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC45-004

Availability

Rear

Leaf Spring

3 + 2 Leaves
Raised Height (45mm Lift)
Comfort Spring

Part Number

L45-151-R

Availability

4 + 2 Leaves
Raised Height (45mm Lift)
Heavy Duty
100Kg Constant Load

Part Number

L45-152-R

Availability

5 + 2 Leaves
Raised Height (45mm Lift)
Super Heavy Duty
250-300Kg Constant Load

Part Number

L45-153-R

Availability

6 + 2 Leaves
Raised Height (45mm Lift)
Extra Super Heavy Duty
500-600Kg Constant Load

Part Number

L45-154-R

Availability

Shock Absorber

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS43-081B

Availability

IFP Monotube Shock
(Long Travel)

Part Number

IMS43-50081B

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA43-A081B

Availability

Spring & Shackle Bush Kit

Kit Contains:
2 x PB59-1529
8 x PB45-1531

Part Number

PB45-1108K

Availability

U-Bolt Kit

Kit Contains:
2 x UB59-453-3

Part Number

UB59-453-3K

Availability

Shackle Kit

Greasable: Fit in Pairs

Part Number

SK45-062

Availability

Shackle Pin

Greasable: Fit in Pairs

Part Number

SP59-060

Availability
