Suitable For

Type:

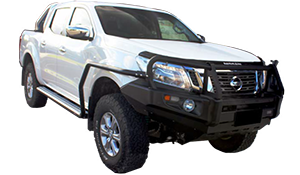

Navara / Frontier

Model:

D23, NP300

Year:

08/2014 on

Detail:

4x4 Single Cab / Dual Cab / Extra Cab,
Coil Spring Rear Suspension Models

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Due to the Restricted Suspension Geometry, a Maximum of 40mm Lift is Achievable in the Front of this Vehicle.

Must Fit GS45-642 or MR45-50642 Shock Absorbers If Raising Vehicle More Than 10mm

2.3L & 2.5L Turbo Diesel

Linear Rate
Standard Height
Heavy Duty
Up to 80Kg

Part Number

C45-440

Availability

Linear Rate
Raised Height (25mm Lift)

Part Number

C45-440

Availability

Linear Rate
Raised Height (35mm Lift)
Up to 50Kg

Part Number

C45-254

Availability

Linear Rate
Raised Height (40mm Lift)
60-90Kg
Comfort Option

Part Number

C45-248X

Availability

Linear Rate
Raised Height (40mm Lift)
60-100Kg

Part Number

C45-442

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-642

Availability

IFP Monotube Shock

Part Number

IMS45-50642

Availability

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A642

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Strut Top Cap

Part Number

SC45-004

Availability

Rear

Coil Spring

Remove OE Coil Spring Insulator and Fit to Dobinsons Coil Spring

Note: Some 2018 Vehicles Have Factory Higher Rear Springs And These Springs Will Provide Approximately 25mm Less Lift Than Stated

Variable Rate
Standard Height
50-150Kg Constant Load

Part Number

C45-457V

Availability

Variable Rate
Standard Height
Heavy Duty
150-300Kg Constant Load

Part Number

C45-459V

Availability

Variable Rate
Raised Height (20mm Lift)
No Load

Part Number

C45-457V

Availability

Variable Rate
Raised Height (40mm Lift)
Up to 80Kg Constant Load
Comfort Option

Part Number

C45-441V

Availability

Variable Rate
Raised Height (40mm Lift)
250-300Kg Constant Load

Part Number

C45-443V

Availability

Variable Rate
Raised Height (40mm Lift)
450-550Kg Constant Load

Part Number

C45-445V

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS45-646

Availability

IFP Monotube Shock

Part Number

IMS45-50646

Availability

IFP Monotube Shock
(Long Travel)

Part Number

IMS45-50653

Availability

Also Suits 3" Lifts

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A646

Availability

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA45-541K

Availability

Lower Control Arm

08/2014 to 11/2020 Only - 848mm OEM

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA45-540K

Availability

Adjustable Panhard Rod

Part Number

PR45-1425

Availability

Swaybar Extension & Brake Extension Bracket

Sway Bar Extension & Brake Extension Bracket

Part Number

SE45-523K

Availability
