Suitable For

Type:

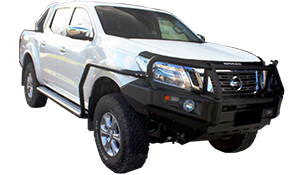

Navara / Frontier

Model:

D23, NP300

Year:

08/2014 on

Detail:

4x4 Single Cab / Dual Cab / Extra Cab,
Coil Spring Rear Suspension Models
3"-3.5" Lift (75mm-85mm)

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

2.3L & 2.5L Turbo Diesel

Linear Rate
Raised Height (75mm Lift)
0-50Kg

Part Number

C45-468

Availability

Linear Rate
Raised Height (75mm Lift)
60-90Kg

Part Number

C45-470

Availability

Shock Absorber

IFP Monotube Shock
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

IMS45-50648

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 106mm / 4.17”

Part Number

MRA45-A648

Availability

X - Centre of Eye to Spring Seat

Includes Vehicle Specific Reservoir Mount Kit

Must Be Fitted With UCAs

Set Extended Length to 420-425mm for Dobinsons, SPC and PSR UCAs, Or 410-415mm For Roadsafe UCAs

Series 5 May Require Notching Of The Lower Trailing Arm to Allow MRR To Fit

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-20mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

6082 Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
Rubber Bushes
with Ball Joint
(Long Travel)

Part Number

UCA45-205K

Availability

Strut Top Cap

Part Number

SC45-004

Availability

Rear

Coil Spring

Remove OE Coil Spring Insulator and Fit to Dobinsons Coil Spring

Note: Some 2018 Vehicles Have Factory Higher Rear Springs And These Springs Will Provide Approximately 25mm Less Lift Than Stated

40mm Lift Coils For Level Look

Variable Rate
Raised Height (40mm Lift)
Up to 80Kg Constant Load
Comfort Option

Part Number

C45-441V

Availability

Variable Rate
Raised Height (40mm Lift)
250-300Kg Constant Load

Part Number

C45-443V

Availability

Variable Rate
Raised Height (40mm Lift)
450-550Kg Constant Load

Part Number

C45-445V

Availability

75mm to 90mm Lift Coils

Variable Rate
Raised Height (75mm Lift)
Up to 80Kg Constant Load

Part Number

C45-447V

Availability

Variable Rate
Raised Height (75mm Lift)
200-300Kg Constant Load

Part Number

C45-449V

Availability

Variable Rate
Raised Height (90mm Lift)
Up to 80Kg Constant Load

Part Number

C45-451V

Availability

Shock Absorber

IFP Monotube Shock

Part Number

IMS45-50653

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA45-A653

Availability

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA45-541K

Availability

Lower Control Arm

08/2014 to 11/2020 Only

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA45-540K

Availability

Adjustable Panhard Rod

Part Number

PR45-1425

Availability

Swaybar Extension & Brake Extension Bracket

Sway Bar Extension & Brake Extension Bracket

Part Number

SE45-523K

Availability
