Suitable For

Type:

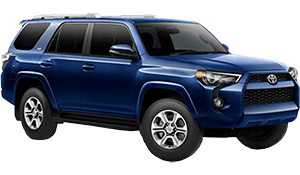

4 Runner

Model:

5th Generation - GRN285

Year:

2009 on

Detail:

4.0L V6 Petrol,
50mm Lift (2”)

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Non-TRD Pro Model Shock Absorbers

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-238

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-300

Availability

Linear Rate
Raised Height (50mm Lift)
50-100Kg

Part Number

C59-302

Availability

TRD Pro Model Shock Absorbers

The Below Coil Springs Suit Only TRD Pro Struts And Will Provide Approximately 25mm Of Lift Over The Original TRD Pro Coils

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-748

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-700

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

IMS59-50700

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

MRA59-A700

Availability

X - Centre of Eye to Spring Seat

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Availability

Diff Drop Kit

Part Number

DD59-527K

Availability

Must Fit When Raising Vehicle Above 50mm

Swaybar Relocation Kit

Sway Bar Relocation Kit

Part Number

SE59-535K

Availability

Rear

Coil Spring

Vehicles With a 3rd Row Seat Will Lift 5mm Less

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-599

Availability

Linear Rate
Raised Height (40mm Lift)

Part Number

C59-505

Availability

Linear Rate
Raised Height (50mm Lift)

Part Number

C59-325

Availability

Linear Rate
Raised Height (50mm Lift)
100-200Kg Constant Load

Part Number

C59-327

Availability

Linear Rate
Raised Height (50mm Lift)
Extra Heavy Duty
300-400Kg Constant Load

Part Number

C59-329

Availability

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Extra Soft - No Load

Part Number

GS59-705

Availability

Twin Tube Nitro-Gas

Part Number

GS59-701

Availability

IFP Monotube Shock

Part Number

IMS59-50701

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A701

Availability

Shock Absorber Bracket

Recommended For Optimal Remote Reservoir Positioning And Fitment

Part Number

RM59-014

Availability

Only For Use With MR59-50701 Or MR59-50705

Hydraulic Bump Stop

Mounting Kit
(Bolt On)

Part Number

HBS59-010FK

Availability

Threaded Body
56mm Diameter
46mm Travel

Part Number

HBS56-009

Availability

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-522K

Availability

Lower Control Arm

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-520K

Availability

Adjustable Panhard Rod

Complete with Bushes

Part Number

PR59-1423

Availability

Swaybar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

SE59-529

Availability
