Suitable For

Type:

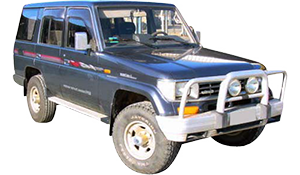

70 Series Prado I, Landcruiser II

Model:

LJ78/79, RJ77, KZJ78

Year:

1987 to 1996

Detail:

Station Wagon SX5, 2.4L Petrol, 2.4L TD

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

Linear Rate
Standard Height

Part Number

C59-290

Availability

Linear Rate
Raised Height (45mm Lift)
Up to 50Kg

Part Number

C59-288

Availability

Linear Rate
Raised Height (45mm Lift)
50-100Kg

Part Number

C59-206

Availability

Linear Rate
Raised Height (60mm Lift)
Up to 50Kg

Part Number

C59-244

Availability

Fit Long Travel Shock Absorber GS59-634 Or IMS59-60634 With The Above Spring

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-632

Availability

To Be Used With Original Toyota Springs OR C59-290, C59-288, C59-206

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-634

Availability

Can Only Be Used with C59-244

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-60634

Availability

Can Only Be Used with C59-244

Steering Damper

Heavy Duty (Big Bore)
Complete with Fittings

Part Number

SD59-824

Availability

Castor Kit

Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.

Adjustable Front Radius Arm Castor Kit
Angle Settings: ±0° or ±2.5°
4 x Polyurethane Eccentric Bushes

Part Number

PB59-503K

Availability

Fixed Rubber Front Radius Arm Castor Kit
Angle Setting: ±2.5°
4 x Rubber Eccentric Bushes

Part Number

RB59-522K

Availability

Swaybar Extension

Swaybar Extensions
(Suits 60mm Lift)

Part Number

SE59-516

Availability

Rear

Coil Spring

Linear Rate
Standard Height

Part Number

C59-291

Availability

Linear Rate
Raised Height (45mm Lift)

Part Number

C59-289

Availability

Linear Rate
Super Raised Height (65mm Lift)
Up to 100Kg Constant Load

Part Number

C59-247

Availability

Fit Long Travel Shock Absorber GS59-633 Or IMS59-60633 With The Above Spring

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-631

Availability

To Be Used With Original Toyota Springs OR C59-291, C59-289

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-633

Availability

Can Only Be Used with C59-247

IFP Monotube Shock (IMS)
(Long Travel)

Part Number

IMS59-60633

Availability

Can Only Be Used with C59-247

Alignment Part

Sway Bar Extension
(Suits 60mm Lift)
Side of Chassis Mount

Part Number

SE59-517

Availability

Chassis Variants May Require An Additional Hole Drilled In SE59-517 Bracket

Under Body Bush Kit

Kit Includes Front & Rear Under Body Bushes

Kit Contains:
2 x Front Radius Rod to Chassis Bush
4 x Front Radius Rod to Diff Bush
2 x Front Panhard Rod Bush
2 x Rear Radius Rod to Chassis Bush
4 x Rear Radius Rod to Diff Bush
2 x Rear Panhard Rod Bush

Part Number

PB59-1260K

Availability
