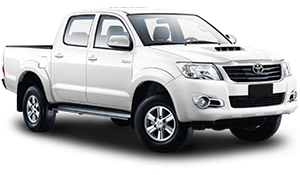

Hilux
Vigo - KUN/GGN 25/26, KZN 35/36
2005 to Mid 2015
4x4 Single Cab, Extra Cab, Dual Cab,
50mm Lift (2")
New product is added into quote successfully.
* Vehicles Fitted with this Part Number MUST be Fitted with GS59-220 Shock Absorber.
Single Cab
4.0L V6 Petrol
KUN26 3.0L TD
Extra Cab, Dual Cab
GGN25 Petrol
Extra Cab, Dual Cab
KUN26 3.0L TD
X - Centre of Eye to Spring Seat
X - Centre of Eye to Spring Seat
Includes Vehicle Specific Bracket.
If Vehicle Specific Bracket Does Not Work, Use RM80-005 Universal Bracket
Only For Use With MR59-50220
Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.
Upper Control Arm
Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers
It is a Requirement that the Brake Adjuster BA59-001 be Fitted when Using These Leaf Springs
When Using L59-040-R, The Longer Leaf On The 2nd Stage May Be Turned Upside Down To Give A Softer Ride.
This Will Reduce Load Carrying Capacity
When Using L59-041-R, The Longer Leaf On The 2nd Stage May Be Turned Upside Down To Give A Softer Ride.
This Will Reduce Load Carrying Capacity
