Suitable For

Type:

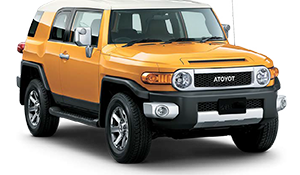

FJ Cruiser

Model:

GSJ15

Year:

11/2006 to 11/2010 (USA), 01/2011 on (AUST)

Detail:

4.0L V6

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

11/2006 to 11/2010

Linear Rate
Raised Height (35mm Lift)

Part Number

C59-238

Availability

Linear Rate
Raised Height (60mm Lift)
Up to 50Kg

Part Number

C59-300

Availability

Linear Rate
Raised Height (60mm Lift)
50-100Kg

Part Number

C59-302

Availability

2011 on

Linear Rate
Raised Height (35mm Lift)

Part Number

C59-296

Availability

Linear Rate
Raised Height (60mm Lift)
Up to 50Kg

Part Number

C59-302

Availability

Linear Rate
Raised Height (60mm Lift)
80-100Kg

Part Number

C59-350

Availability

Shock Absorber

11/2006 to 11/2010

Twin Tube Nitro-Gas

Part Number

GS59-221

Availability

Monotube Remote Reservoir
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

MR59-50221

Availability

X - Centre of Eye to Spring Seat

2011 on

Twin Tube Nitro-Gas

Part Number

GS59-700

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

IMS59-50700

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 213mm / 8.38"

Part Number

MRA59-A700

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-25mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-002K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Forged Aluminium (Pair)
Adjustable Camber
Increased Castor
With Ball Joint

Part Number

UCA59-202K

Availability

Strut Top Cap

Part Number

SC59-001

Availability

Strut Spacer

5mm Trim Packer
(10mm Lift)

Part Number

PS59-4030

Availability

Maximum 1 Per Shock.
Requires Diff Drop Kit If Fitting To IMS or MRA Shock Absorbers

Diff Drop Kit

Part Number

DD59-527K

Availability

Must Fit When Raising Vehicle Above 50mm

Swaybar Relocation Kit

Sway Bar Relocation Kit

Part Number

SE59-535K

Availability

Rear

Coil Spring

Linear Rate
Raised Height (30mm Lift)

Part Number

C59-599

Availability

Linear Rate
Raised Height (60mm Lift)

Part Number

C59-325

Availability

Linear Rate
Raised Height (60mm Lift)
150-300Kg Constant Load

Part Number

C59-327

Availability

Linear Rate
Raised Height (80mm Lift)

Part Number

C59-327

Availability

Linear Rate
Raised Height (80mm Lift)
100-300Kg Constant Load

Part Number

C59-329

Availability

Shock Absorber

Twin Tube Nitro-Gas
Comfort Option
Extra Soft - No Load

Part Number

GS59-705

Availability

Twin Tube Nitro-Gas
(Long Travel)

Part Number

GS59-701

Availability

Twin Tube Nitro-Gas
Extra Heavy Duty
Standard Height Only

Part Number

GS59-637

Availability

IFP Monotube Shock

Part Number

IMS59-50701

Availability

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A701

Availability

Hydraulic Bump Stop

Mounting Kit
(Bolt On)

Part Number

HBS59-010FK

Availability

Threaded Body
56mm Diameter
46mm Travel

Part Number

HBS56-009

Availability

Control Arm

Designed For More Articulation

Upper Control Arm

Heavy Duty Rear Upper
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-522K

Availability

Lower Control Arm

Heavy Duty Rear Lower
Adjustable Control Arms (Pair)
Complete With Bushes

Part Number

WA59-520K

Availability

Adjustable Panhard Rod

Complete with Bushes

Part Number

PR59-1423

Availability

Swaybar Extension

Adjustable Sway Bar Extension
(Suits 2" to 4" Lift)

Part Number

SE59-529

Availability
