Suitable For

Type:

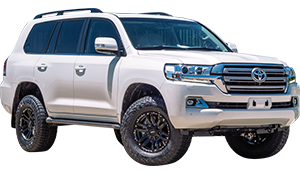

Landcruiser

Model:

200 Series - UZJ / URJ / GRJ / VDJ 200

Year:

11/2007 on

Detail:

Station Wagon

Download Catalogue Page

Coil Springs: Sold in Pairs. Torsion Bars: Sold in Pairs. Prices are subject to change without notice. *Raised Height Measurements are Listed as a Guide Only

Front

Coil Spring

GRJ200 4.0L 6 Cyl. Petrol

Linear Rate
Standard Height

Part Number

C59-536

Availability

Linear Rate
Raised Height (50mm Lift)

Part Number

C59-540

Availability

UZJ200 4.7L V8 Petrol
URJ200 5.7L V8 Petrol

Linear Rate
Raised Height (25mm Lift)

Part Number

C59-538

Availability

Linear Rate
Raised Height (35mm Lift)

Part Number

C59-540

Availability

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C59-542

Availability

Linear Rate
Raised Height (50mm Lift)
80-100Kg

Part Number

C59-544

Availability

VDJ200 4.5L Twin Turbo
V8 Diesel

Linear Rate
Raised Height (30mm Lift)

Part Number

C59-540

Availability

Linear Rate
Raised Height (50mm Lift)
0-50Kg

Part Number

C59-544

Availability

Linear Rate
Raised Height (50mm Lift)
80-100Kg

Part Number

C59-568

Availability

Shock Absorber

Twin Tube Nitro-Gas
Extra Heavy Duty

Part Number

GS59-690

Availability

Twin Tube Nitro-Gas
Monster Shock
Extra Heavy Duty
45mm Piston, 75mm Body

Part Number

GS59-734

Availability

IFP Monotube Shock
Adjustable Spring Seat Height
X = 222mm / 8.74"

Part Number

IMS59-60688

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
Adjustable Spring Seat Height
X = 222mm / 8.74"

Part Number

MR59-60688

Availability

X - Centre of Eye to Spring Seat

Monotube Remote Reservoir
(3-Way Adjustable)
Adjustable Spring Seat Height
X = 222mm / 8.74"

Part Number

MRA59-A688

Availability

X - Centre of Eye to Spring Seat

Bump Stop

Replacement Bump Stop
Progressive Adjustable 0-35mm Extension

Part Number

BS59-560

Availability

Replaces Original Bump Stop.
If Exceeding Listed Spring Seat Heights This MUST Be Used To Prevent Coil Bind.

Control Arm

Upper Control Arm

(Pair) Chrome-Moly Tubular
3º Castor Built In
Rubber Bushes
with Ball Joint

Part Number

UCA59-001K

Availability

Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment

Strut Top Cap

Part Number

SC59-006

Availability

Diff Drop Kit

Part Number

DD59-530K

Availability

Sway Bar

Heavy Duty
Rate Increased 42%
39mm Bar

Part Number

SB59-1928

Availability

Rear

Coil Spring

USA & Middle East Delivered Vehicles Will Lift 1.5" / 35mm More Than Listed Due To Lower Factory Ride Heights In Rear.

Linear Rate
Standard Height

Part Number

C59-543

Availability

Variable Rate
Raised Height (10mm Lift)
This Variable Rate Coil Allows Less Height Change and Provides a Firmer Ride When Loading

Part Number

C59-559V

Availability

Linear Rate
Raised Height (30mm Lift)

Part Number

C59-535

Availability

Linear Rate
Raised Height (30mm Lift)
100-200Kg Constant Load

Part Number

C59-545

Availability

Linear Rate
Raised Height (30mm Lift)
400Kg Constant Load

Part Number

C59-547

Availability

Linear Rate
Raised Height (50mm Lift)
No Load

Part Number

C59-545

Availability

Linear Rate
Raised Height (50mm Lift)
250-300Kg Constant Load

Part Number

C59-547

Availability

Linear Rate
Raised Height (50mm Lift)
500Kg Constant Load

Part Number

C59-549

Availability

Shock Absorber

Twin Tube Nitro-Gas

Part Number

GS59-682

Availability

Twin Tube Nitro-Gas
Monster Shock
Extra Heavy Duty
45mm Piston, 70mm Body

Part Number

GS59-698

Availability

IFP Monotube Shock

Part Number

IMS59-60682

Availability

Monotube Remote Reservoir

Part Number

MR59-60682

Availability

MR59-60682 Only Suits KDSS Models

Monotube Remote Reservoir
(3-Way Adjustable)

Part Number

MRA59-A682

Availability

Requires RM59-037 For Non-KDSS Models

Shock Absorber Bracket

Required For Optimal Reservoir Positioning And Fitment

Part Number

RM59-037

Availability

Only For Use With MRA59-A682 (Non-KDSS Models)

Adjustable Panhard Rod

Complete with Bushes

Part Number

PR59-1421

Availability

Recommended for Lifts Above 35mm to Correct Wheel Alignment.

Sway Bar

Heavy Duty
Rate Increased 143%
33mm Bar

Part Number

SB59-1929

Availability
